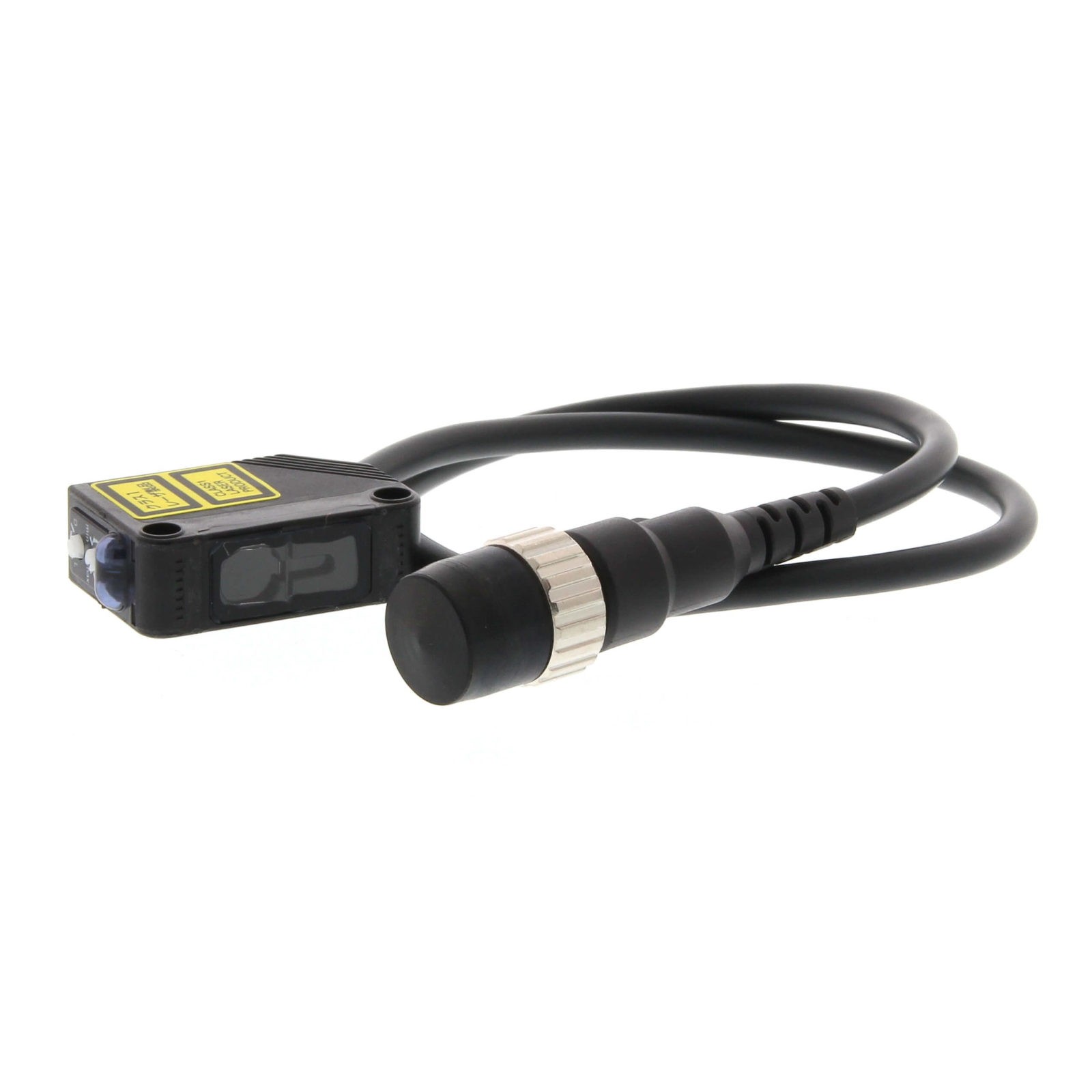

Датчик фотоэл. прямоуг. E3Z, рефлекторный, лазерный, 15м, PNP, кабель 0.3м с разъёмом M8 4-pin

Ambient temperature

-10-55 °C

Analogue output -10 V ... +10 V

FALSE

Analogue output 0 mA ... 20 mA

FALSE

Analogue output 0 V ... 10 V

FALSE

Analogue output 4 mA ... 20 mA

FALSE

Construction type housing

Cuboid

Degree of protection (IP)

IP67

Diameter sensor

-8888 mm

Explosion safety category for dust

None

Explosion safety category for gas

None

Height of sensor

32.2 mm

Laser protection class

Class 1

Length of sensor

20 mm

Material housing

Plastic

Material of optical surface

Plastic

Max. output current

100 mA

Max. output current at protected output

-8888 mA

Max. switching distance

15000 mm

Min. reflector distance

200 mm

Number of contact energized outputs with signalling function

0

Number of protected contact energized outputs

0

Number of protected semiconductor outputs

0

Number of semiconductor outputs with signalling function

1

Operation agent-safety class

Safety class 3

Pre failure notice

FALSE

Rated control supply voltage Us at AC 50Hz

0-0 V

Rated control supply voltage Us at AC 60Hz

0-0 V

Rated control supply voltage Us at DC

12-24 V

Rated switching distance

15000 mm

Response time

1 ms

Sensing mode

Light-/dark switching

Setting procedure

Manual adjustment

Suitable for safety functions

FALSE

Switching frequency

1000 Hz

Switching voltage of OSSD at state "high"

-8888 V

Transmission range of the safety field

-8888 m

Type of electric connection

Other

Type of interface for safety communication

Other

Type of light

Laser diode, red light

Type of safety according to IEC 61496-1

1

Type of switch function

Programmable/configurable

Type of switching output

PNP

Voltage type

DC

Wavelength of the sensor

655 nm

Width sensor

10.8 mm

With communication interface analogue

FALSE

With communication interface AS-Interface

FALSE

With communication interface CANOpen

FALSE

With communication interface DeviceNet

FALSE

With communication interface Ethernet

FALSE

With communication interface INTERBUS

FALSE

With communication interface PROFIBUS

FALSE

With communication interface RS-232

FALSE

With communication interface RS-422

FALSE

With communication interface RS-485

FALSE

With communication interface SSD

FALSE

With communication interface SSI

FALSE

With monitoring function downstream switching devices

FALSE

With other analogue output

FALSE

With reflector

FALSE

With restart blockage

FALSE

With time function

FALSE
