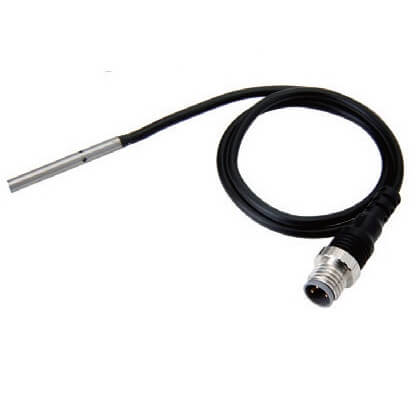

Индуктивный датчик, диаметр 3мм, экранированный, 0.8мм, DC, 3-wire, Pig-Tail, PNP NO

Cascadable

TRUE

Coating housing

Other

Compression-resistant

FALSE

Construction type housing

Cylinder plain

Degree of protection (NEMA)

Other

Diameter sensor

3 mm

Explosion safety category for dust

None

Explosion safety category for gas

None

Height of sensor

-8888 mm

Length of sensor

27.1 mm

Material housing

Metal

Max. output current at protected output

-8888 mA

Mechanical mounting condition for sensor

Concise

Number of contact energized outputs with signalling function

0

Number of protected contact energized outputs

0

Number of protected semiconductor outputs

0

Number of semiconductor outputs with signalling function

1

Performance level according to EN ISO 13849-1

Level a

Rated control supply voltage Us at AC 50Hz

0-0 V

Rated control supply voltage Us at AC 60Hz

0-0 V

Rated control supply voltage Us at DC

12-24 V

SIL according to IEC 61508

None

Suitable for safety functions

FALSE

Supply voltage

12-24 V

Switching distance

0.8 mm

Switching frequency

5000 Hz

Type of actuation

Metallic Target

Type of electric connection

Connector M8

Type of interface

None

Type of interface for safety communication

None

Type of switch function

Normally open contact

Type of switching output

PNP

Voltage type

DC

Width sensor

-8888 mm

With monitoring function downstream switching devices

FALSE
