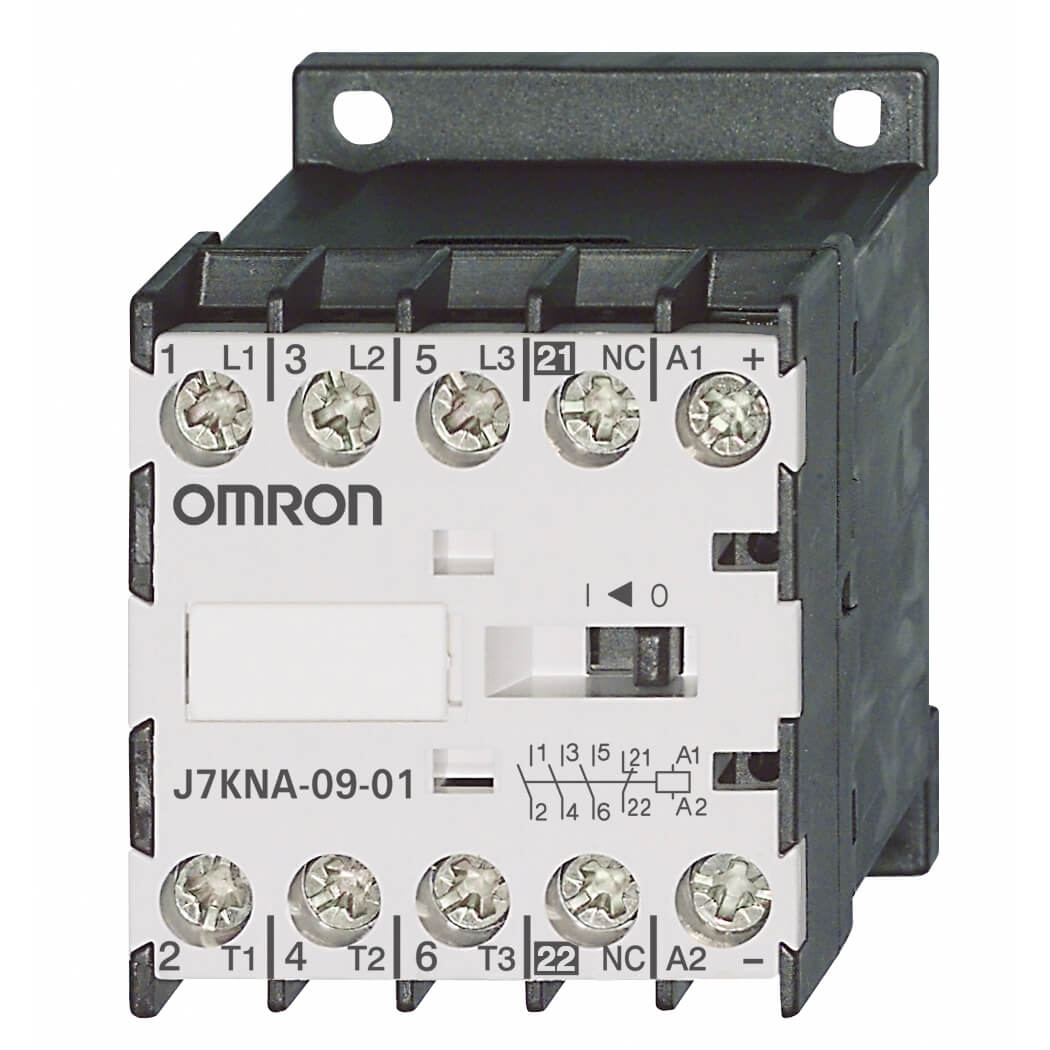

Миниконтактор для двигателей серии J7KNA, ток двигателя 9 А , 0 NO 1 NC, напряжение катушки 110 V AC

Modular version

FALSE

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

0

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

3

Rated control supply voltage Us at AC 50Hz

110-115 V

Rated control supply voltage Us at AC 60Hz

110-115 V

Rated operation current Ie at AC-1, 400 V

13.8 A

Rated operation current Ie at AC-3, 400 V

9 A

Rated operation current Ie at AC-4, 400 V

9 A

Rated operation power at AC-3, 400 V

4 kW

Rated operation power at AC-4, 400 V

4 kW

Type of electrical connection of main circuit

Screw connection

Voltage type for actuating

AC
