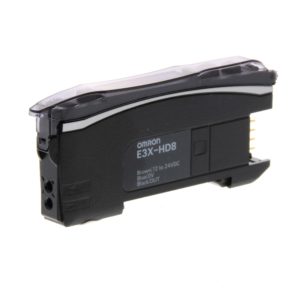

Усилитель оптоволоконного датчика PNP с аналоговой индикацией, с кабелем

Ambient temperature

-25-55 °C

Analogue output -10 V ... +10 V

FALSE

Analogue output 0 mA ... 20 mA

FALSE

Analogue output 0 V ... 10 V

FALSE

Analogue output 4 mA ... 20 mA

FALSE

Construction type housing

Cuboid

Degree of protection (IP)

IP50

Height amplifier

31.5 mm

Indication

Bargraph

Laser protection class

Other

Length amplifier

67.3 mm

Material fibre optics core

Plastic

Material housing

Plastic

Material of cable sheath

Polyvinyl chloride (PVC)

Max. output current

50 mA

No-load current

35 mA

Number of contact energized outputs with signalling function

1

Number of semiconductor outputs with signalling function

1

Operation agent-safety class

Safety class 0

Rated control supply voltage Us at DC

12-24 V

Setting procedure

Manual adjustment

Switching frequency

2.5 kHz

Type of electric connection

Cable

Type of light

Polarity free red light

Type of switch function

Programmable/configurable

Type of switching output

PNP

Voltage type

DC

Width amplifier

10 mm

With blanking function

FALSE

With time function

TRUE
