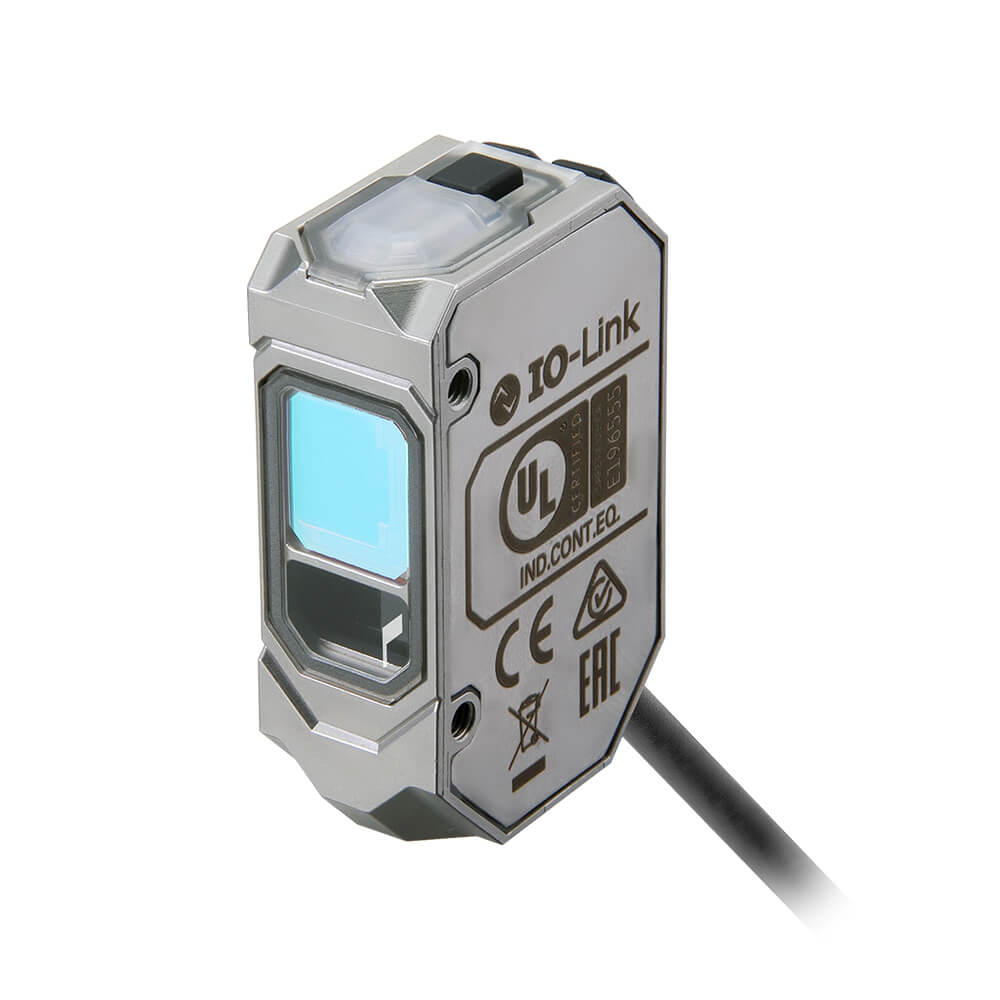

Датчик фотоэлектрический, нерж. сталь, красный лазер класс 1, подавление заднего фона, луч: точка, 35-150 мм, PNP, на свет/на темноту, IO-Link COM3, кабель 2м

Adjustment range

35-150 mm

Ambient temperature

-10-50 °C

Analogue output -10 V ... +10 V

FALSE

Analogue output 0 mA ... 20 mA

FALSE

Analogue output 0 V ... 10 V

FALSE

Analogue output 4 mA ... 20 mA

FALSE

AWG-number

22

Construction type housing

Cuboid

Degree of protection (IP)

IP67

Diameter sensor

-8888 mm

Explosion safety category for dust

None

Explosion safety category for gas

None

Height of sensor

48.6 mm

Laser protection class

Class 1

Length of sensor

30.4 mm

Light dot

3.25 mm²

Material housing

Metal

Material of cable sheath

Polyvinyl chloride (PVC)

Material of optical surface

Plastic

Max. output current

100 mA

Max. output current at protected output

-8888 mA

Max. switching distance

150 mm

Min. reflector distance

-8888 mm

Number of contact energized outputs with signalling function

0

Number of protected contact energized outputs

0

Number of protected semiconductor outputs

0

Number of semiconductor outputs with signalling function

2

Operating distance

35-150 mm

Operation agent-safety class

Safety class 3

Pre failure notice

FALSE

Rated control supply voltage Us at AC 50Hz

0-0 V

Rated control supply voltage Us at AC 60Hz

0-0 V

Rated control supply voltage Us at DC

10-30 V

Rated switching distance

150 mm

Response time

1.5 ms

Sensing mode

Light-/dark switching

Setting procedure

Teach-In

Suitable for safety functions

FALSE

Switching frequency

333 Hz

Switching voltage of OSSD at state "high"

-8888 V

Transmission range of the safety field

-8888 m

Triangulation

Background fade-out

Type of electric connection

Cable

Type of interface for safety communication

Other

Type of light

Laser diode, red light

Type of switch function

Programmable/configurable

Type of switching output

PNP

Voltage type

DC

Wavelength of the sensor

660 nm

Width sensor

15.5 mm

With communication interface analogue

FALSE

With communication interface AS-Interface

FALSE

With communication interface CANOpen

FALSE

With communication interface DeviceNet

FALSE

With communication interface Ethernet

FALSE

With communication interface INTERBUS

FALSE

With communication interface PROFIBUS

FALSE

With communication interface RS-232

FALSE

With communication interface RS-422

FALSE

With communication interface RS-485

FALSE

With communication interface SSD

FALSE

With communication interface SSI

FALSE

With monitoring function downstream switching devices

FALSE

With other analogue output

FALSE

With reflector

FALSE

With restart blockage

FALSE

With time function

TRUE
